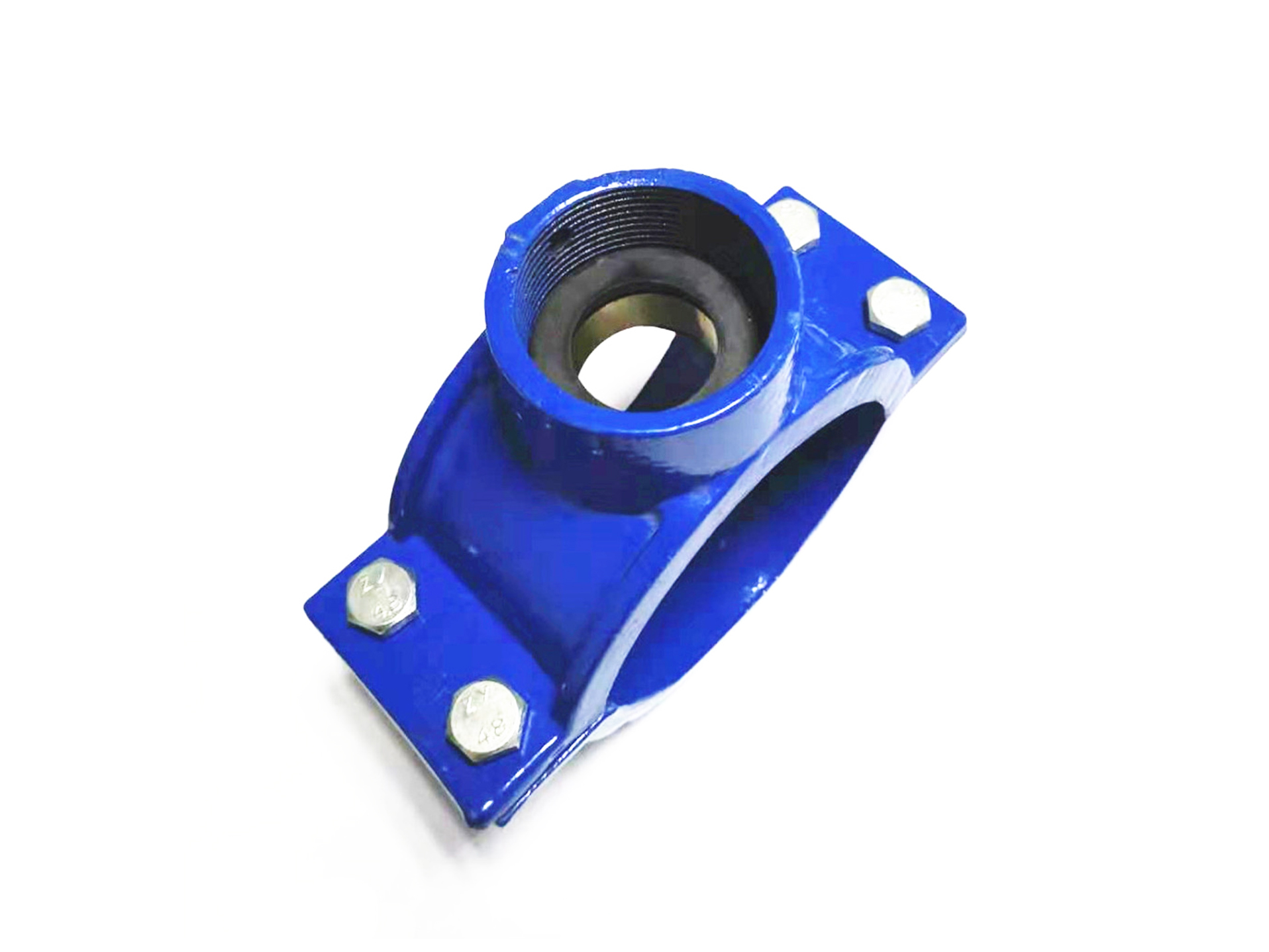

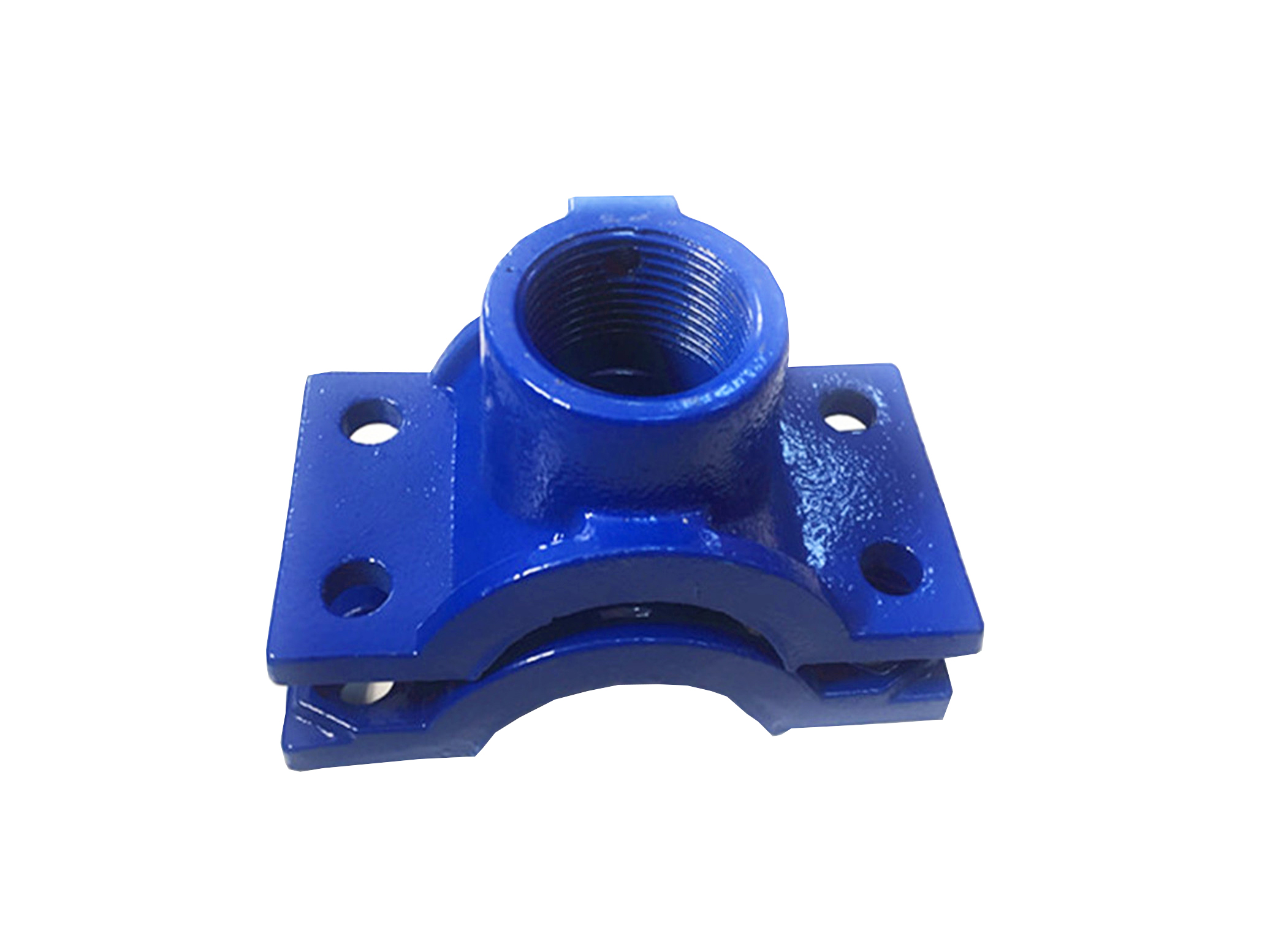

Ductile Iron Saddle Clamp For PVC/PE Pipe
-250 micron blue epoxy coating approved for potable water.
-Saddle for PVC/PE with branch thread.
-EPDM elastomer watertight joint according EN681.
-Mild steel bolts according DIN933.
-Made of ductile iron GGG50/GJS-500 according to ISO1083.
-Products manufactured according to EN12842 standard.
Material:ductile iron
Body Size range:DN40-DN315MM
Branch Size range:1/2"to 2"
For PE pipes of EN12201/ISO4427
For PVC pipes of EN1452/ISO4422
Gasket:NBR or EPDM
Bolts and nuts:carbon steel or stainless steel
Coating:fusion bonded epoxy coating 250 micron
NO. | DN (MM) | WEIGHT (KG) |
1 | DN50*20 | 1.3 |
2 | DN63*20 | 1.4 |
3 | DN75*20 | 1.5 |
4 | DN90*20 | 1.7 |
5 | DN110*20 | 2 |
6 | DN160*20 | 2.9 |
7 | DN63*40 | 1.5 |
8 | DN75*40 | 1.7 |
9 | DN90*40 | 1.9 |
10 | DN110*40 | 2.2 |
11 | DN160*40 | 3.1 |
